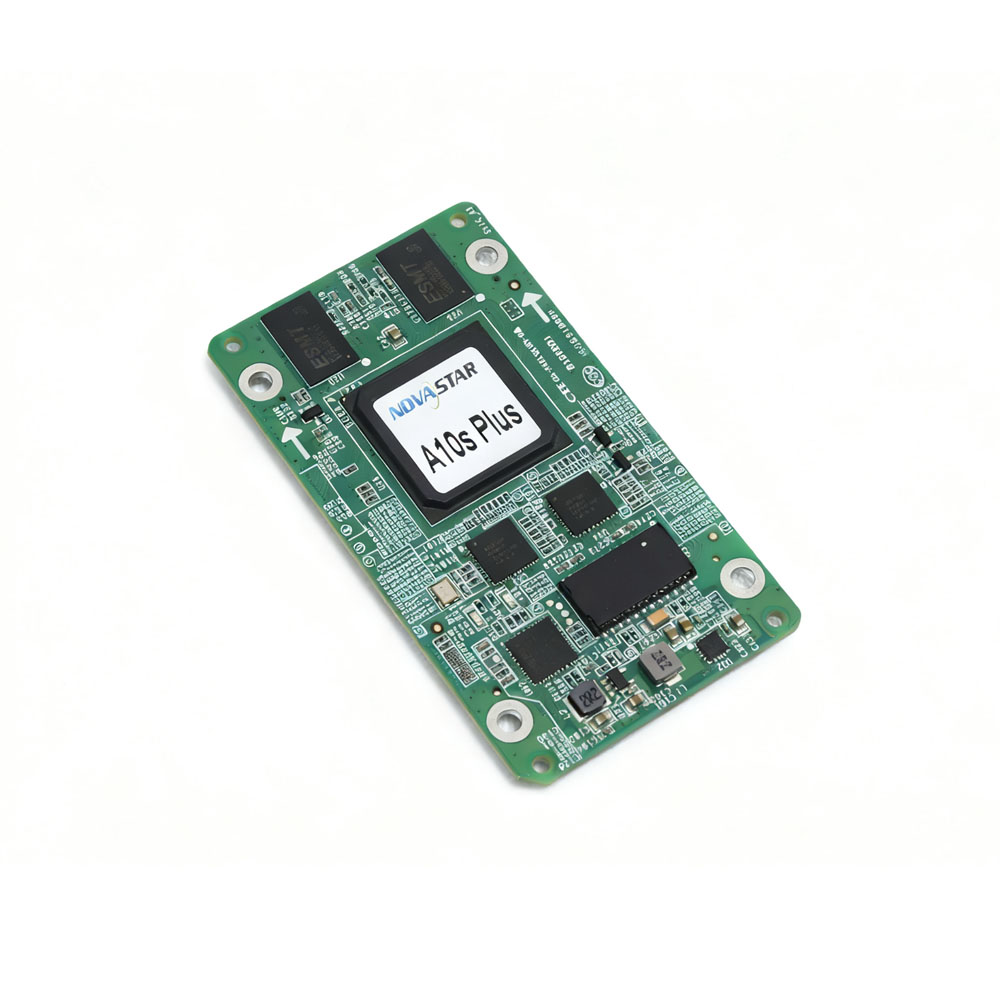

A10s Plus LED Receiving Card 512×512 High Resolution

The A10s Plus is a high-end compact LED receiving card built for high-resolution and high-performance LED display systems. It supports a maximum loading resolution of 512×512 pixels at 60Hz, delivering powerful processing capacity for large and fine-pitch LED panels. Equipped with 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups), it ensures fast and stable signal transmission with a standard Ethernet cable distance up to 100 meters. Featuring Image Booster Engine technology, it achieves 64× grayscale improvement, 22bit+ color depth, and precise pixel-level brightness and chromaticity calibration for uniform, flicker-free, and vivid visuals. It supports HDR10/HLG, low latency, 3D, RGB independent Gamma adjustment, and free image rotation. The card uses high-density dust-resistant connectors and EMC Class B compliant hardware for reliable operation in harsh environments. It is ideal for indoor fine-pitch screens, outdoor advertising displays, rental LED panels, stage backgrounds, and high-end commercial installations.
