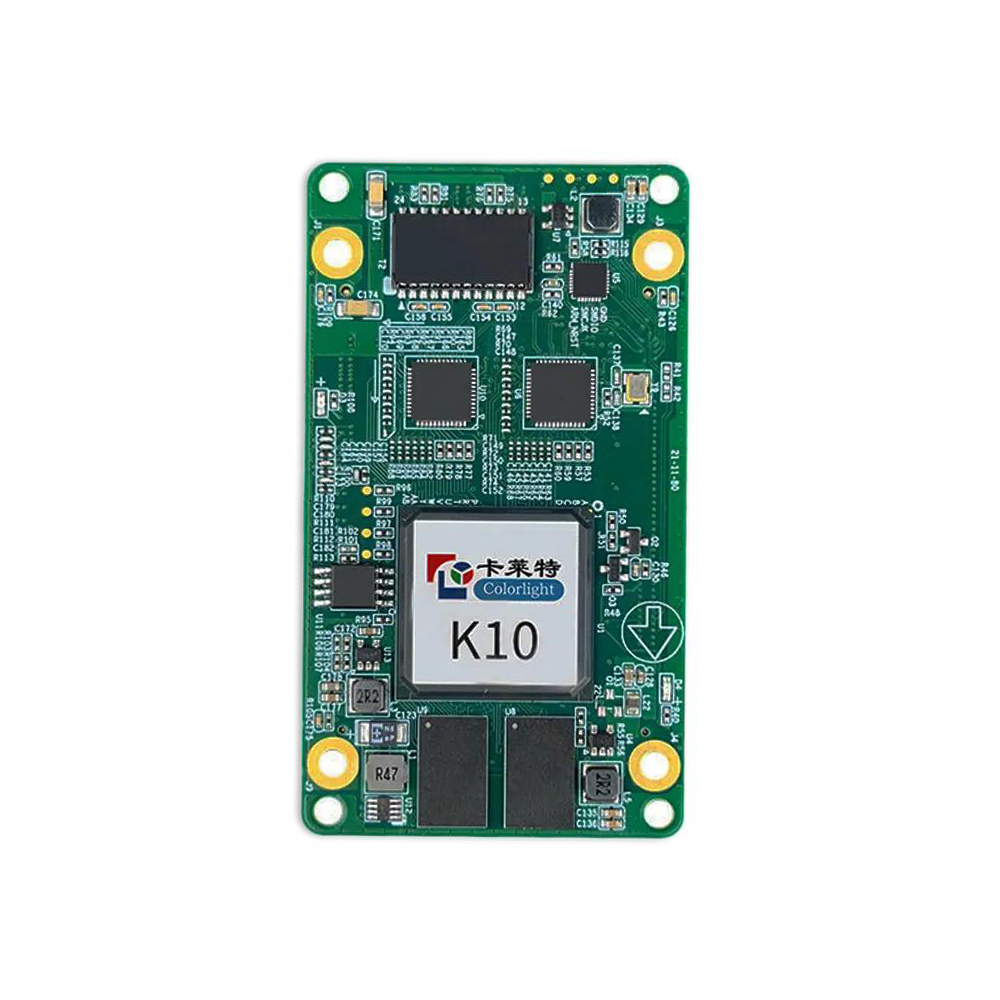

Colorlight K10 LED Display Receiving Card

Model: Colorlight K10. It is a compact high-end universal receiving card for fine-pitch LED displays, with dimensions of 80.0×45.0mm and a weight of 21g. It supports a maximum load capacity of 512×512 pixels, up to 32 parallel data groups or 64 serial data groups (expandable to 128 serial data groups). Equipped with high-density connectors, it offers dustproof, shockproof performance and high stability. It supports 12bit color depth (68 billion colors), HDR10/HLG standards, and Infi-bit color extension for rich, detailed visuals. It provides independent RGB gamma adjustment, color temperature correction, and low-brightness high-grayscale processing. Interfaces include 1×Gigabit Ethernet port (1Gbps rate) with a transmission distance of up to 100 meters via Cat5e cable. It supports dual-card hot backup, loop redundancy, and 7×24-hour uninterrupted operation. Additional functions include per-pixel brightness/chromaticity calibration, seam correction, 90°/180°/270° screen rotation, cabinet temperature/voltage monitoring, and ShutterLock for camera synchronization. Ideal for indoor/outdoor fine-pitch LED screens, high-end rental displays, command centers, shopping mall video walls, and creative LED installations.
