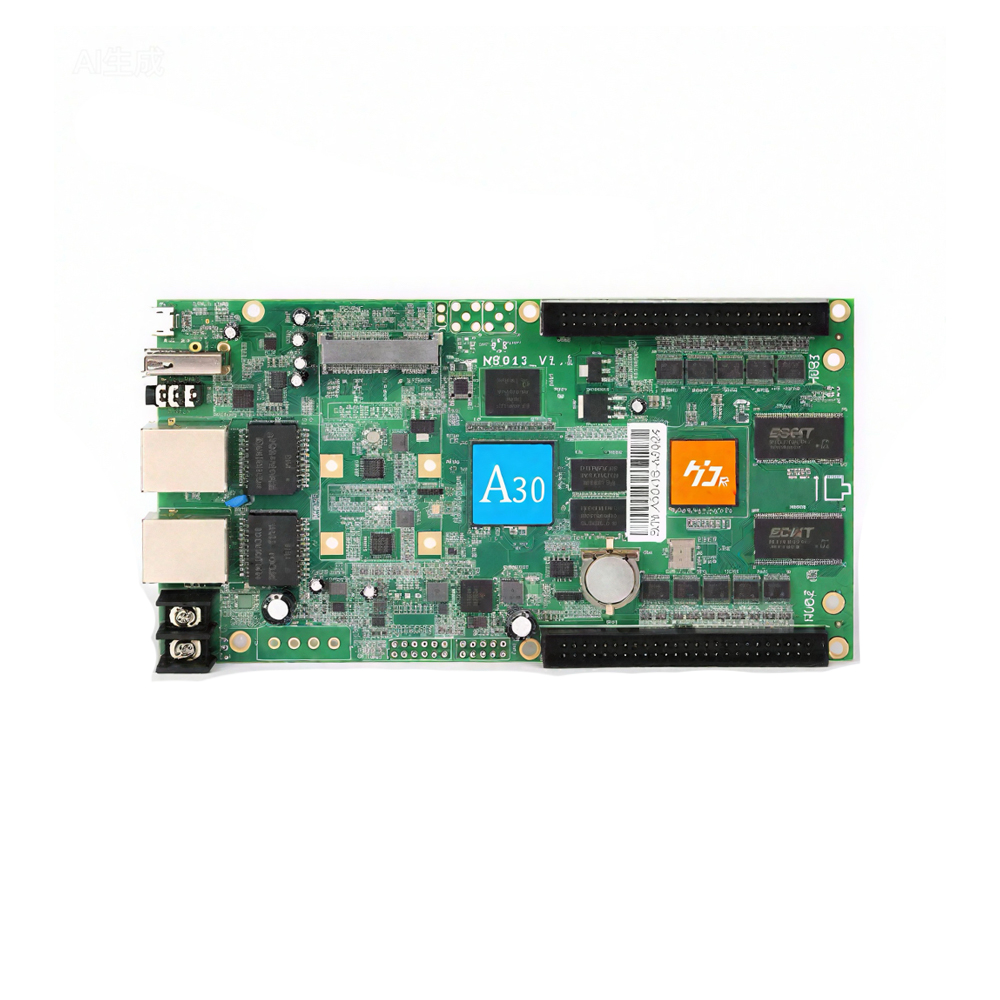

HD-A30 Asynchronous Full-Color LED Controller 1024×512 Pixels

HD-A30 is a high-performance asynchronous full-color LED controller integrating sending and receiving card functions, designed for small-pitch LED screens and standalone display applications. It supports a maximum pixel load of 1024×512, with flexible resolution options including 2048×256 and 512×1024, compatible with indoor/outdoor full-color, single/dual-color LED modules and scan modes from static to 1/32. Equipped with rich interfaces: 1×10/100/1000M Ethernet port for stable signal transmission up to 100 meters via CAT6 cables, 1×USB 2.0 for plug-and-play storage expansion up to 128GB, a 3.5mm stereo audio jack for synchronized audio output, and a DC 5V power port. It features built-in 2.4GHz Wi-Fi for wireless control, with an optional 4G module enabling remote cloud management and multi-screen cluster control. Onboard 4GB flash memory stores videos, images, GIFs, texts, and office files for offline playback, supporting hardware 1080P HD video decoding at 60Hz frame rate, 0-65536 grayscale levels, and scheduled playback. Control via HDPlayer software, mobile APP, or cloud platform for remote updates and centralized management. Operating voltage DC 4.5-5.5V, low power consumption <4W, working temperature -20°C to 80°C. Ideal for retail window displays, shopping mall advertising, community information screens, exhibition booths, and small indoor/outdoor LED billboards.
