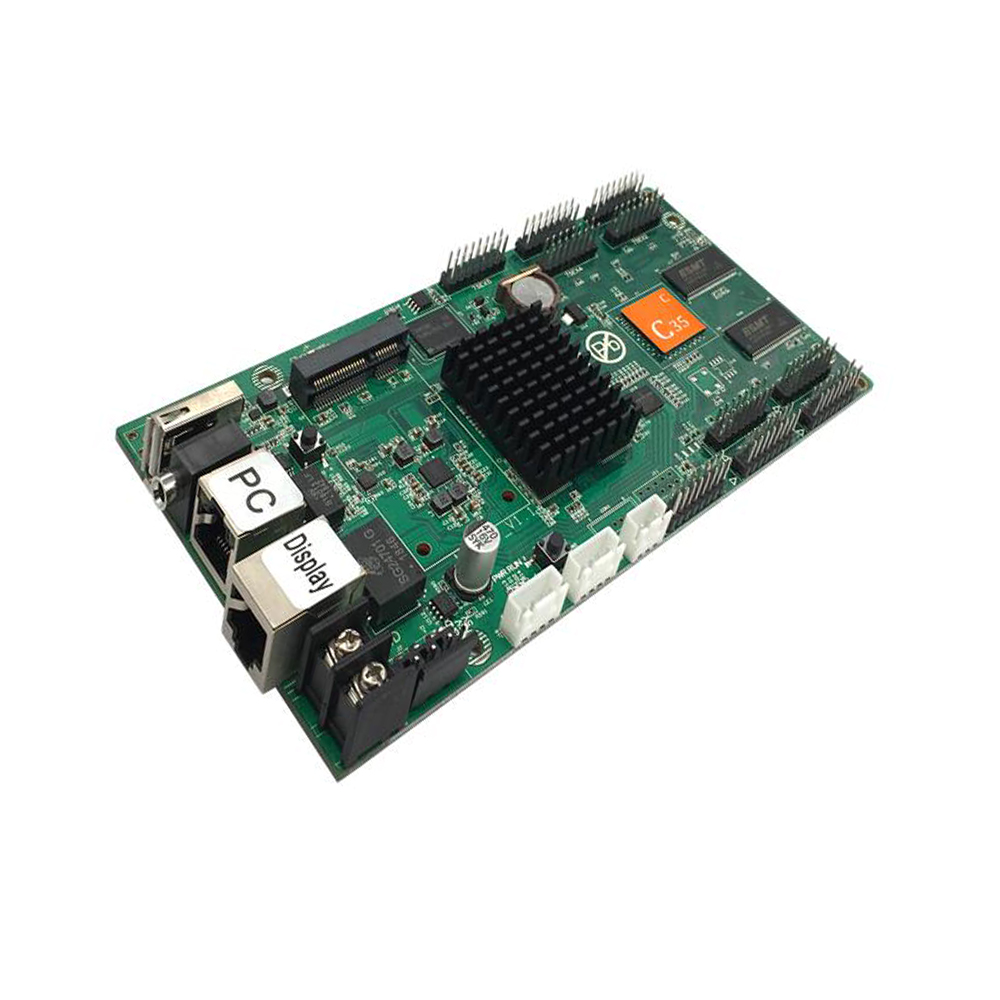

HD-C35 Asynchronous Full-Color LED Controller 1024×512 Pixels

HD-C35 is a 3rd-generation asynchronous full-color LED controller built on the Android platform with a quad-core 1.6GHz CPU, integrating both sending and receiving card functions for flexible standalone or expanded operation. It supports a maximum pixel load of 1024×512, with ultra-wide resolution up to 1024×1024, compatible with indoor/outdoor full-color and single/dual-color LED modules and scan modes from static to 1/64. Rich interfaces include 1×10/100M Ethernet port for signal transmission up to 80 meters via CAT5e/CAT6 cables, 1×USB 2.0 for storage expansion up to 128GB, a 3.5mm stereo audio jack, and a DC 5V power port. It features 2.4GHz Wi-Fi for wireless control, with an optional 4G module enabling remote cloud management and multi-screen cluster control. Onboard 4GB flash memory stores videos, images, GIFs, texts, and office files for offline playback, supporting hardware 1080P HD video decoding at 60Hz frame rate, automatic content scaling, and scheduled playback. Control via HDPlayer software, mobile APP, or cloud platform for remote updates and centralized management. Operating voltage DC 5V, low power consumption, working temperature -20°C to 80°C. Ideal for retail store displays, window signage, shopping mall advertising, exhibition booths, and small-to-medium indoor/outdoor LED billboards.
