Model: Linsn RV908T. It is a high-performance LED receiving card designed for full-color LED display systems, fully compatible with Linsn RV801 series and supporting all RV801 functions. The card integrates 12 onboard HUB75 16-pin interfaces, eliminating the need for extra HUB boards and simplifying system installation. It adopts 18-bit signal processing, delivering up to 260,000 grayscale levels for each RGB channel and supporting 12-bit HDMI color input when paired with TS901 sending cards.
Single card maximum load reaches 1024×256 pixels, supporting 24 groups of RGB data output. It features stable signal transmission over 100 meters via CAT5e/CAT6 cables with low attenuation. Built-in monitoring includes temperature, voltage, fan speed and cabinet door status, plus pixel, network cable and ribbon cable fault detection. It supports single-card color space conversion, 1024-level point-by-point chromaticity correction, configuration file readback and dual-card hot backup for critical projects.
Widely used in outdoor billboards, indoor shopping mall video walls, stage rental displays, stadium perimeter screens, airport/railway station guidance screens and commercial exhibition LED systems. It complies with CE-EMC and RoHS standards, ensuring reliable 24/7 operation in wide temperature ranges.
LED Receiving Cards, Linsn Receiving Cards

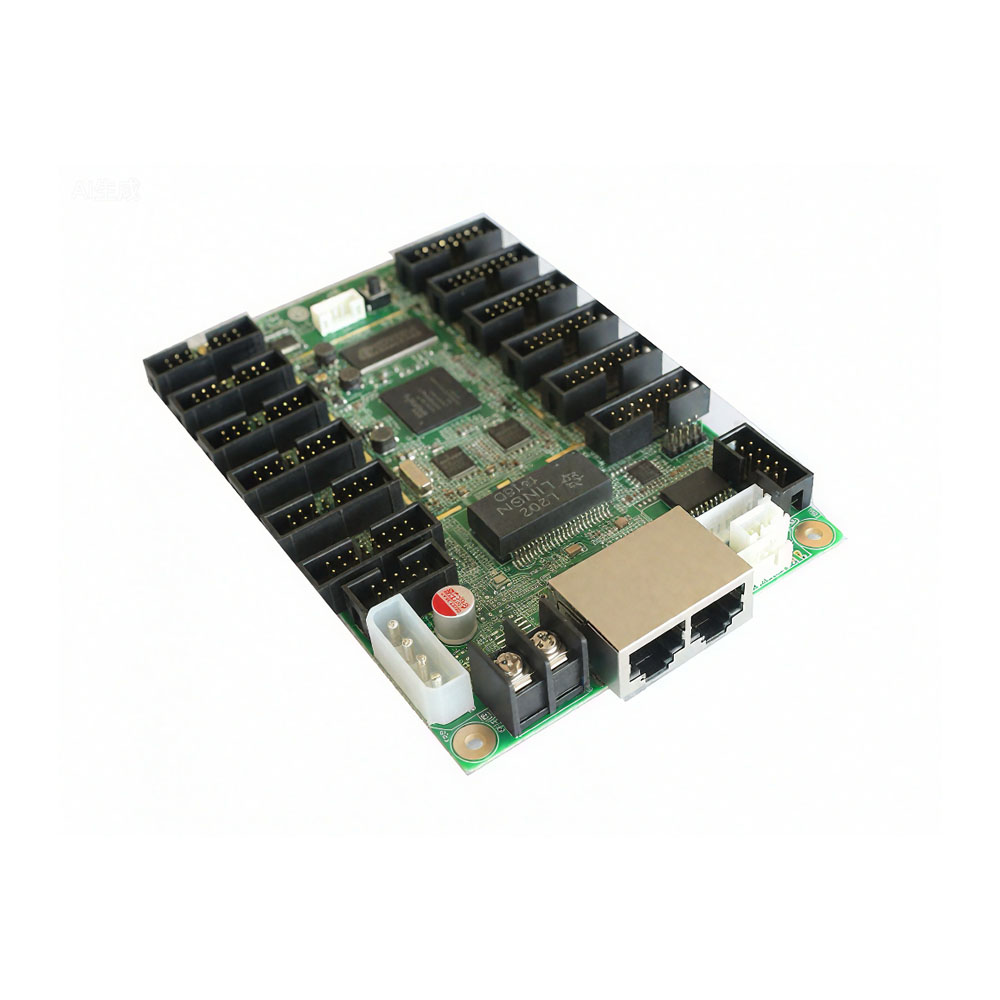

Linsn RV908T LED Receiving Card With 12 HUB75 Interfaces
Linsn RV908T is an onboard HUB75 LED receiving card supporting 1024×256 pixels, 18-bit grayscale and full monitoring for Linsn LED display systems.
