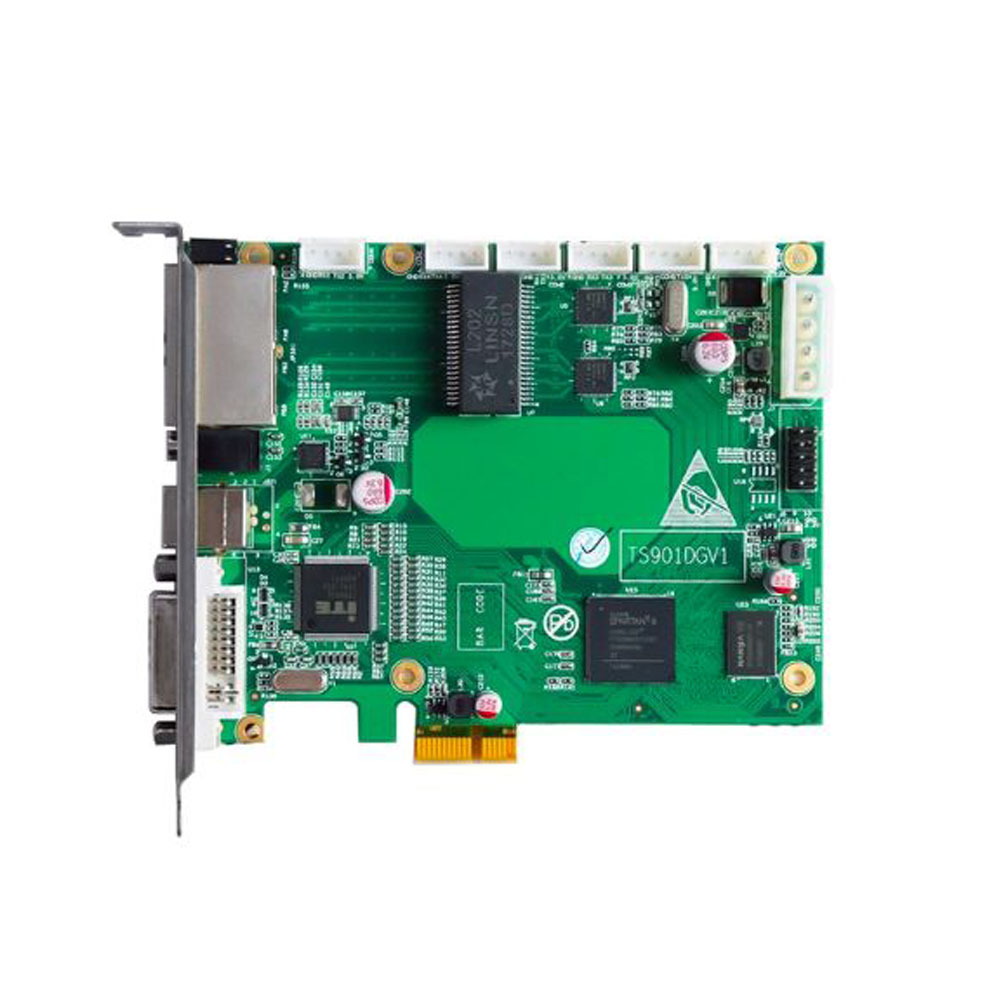

Model: Linsn TS901. It is a high‑performance LED sending card developed as an upgraded replacement for the TS802D, designed to transmit video and audio signals to Linsn receiving cards for full‑color LED display systems. Interfaces include 1×DVI video input, 1×3.5mm audio input, and 2×RJ45 Gigabit Ethernet outputs, supporting stable signal transmission over 100 meters via CAT5e/CAT6 cables. It works with all Linsn RV8XX and RV9XX series receiving cards, compatible with full‑color, dual‑color, and single‑color LED screens.
Key functions: Maximum resolution of 2048×640 pixels in 60Hz mode or 4032×512 pixels in 30Hz mode, with each RJ45 port supporting up to 655,360 pixels. It features .RCG and .CON configuration file broadcasting, allowing receiving card replacement without reloading files. Zoom in/out and screen rotation (0°/90°/180°/270°) enable flexible content adaptation. Manual brightness adjustment (16/32/64 grades) is available with an optional outer box. Built‑in 24‑bit audio transmission delivers synchronized high‑quality sound.
Operating temperature ranges from ‑20℃ to 75℃, supporting long‑term stable operation. Application scenarios: indoor/outdoor LED video walls, rental stage displays, stadium screens, shopping mall advertising, airport/railway signage, exhibition halls, and conference room LED systems.
