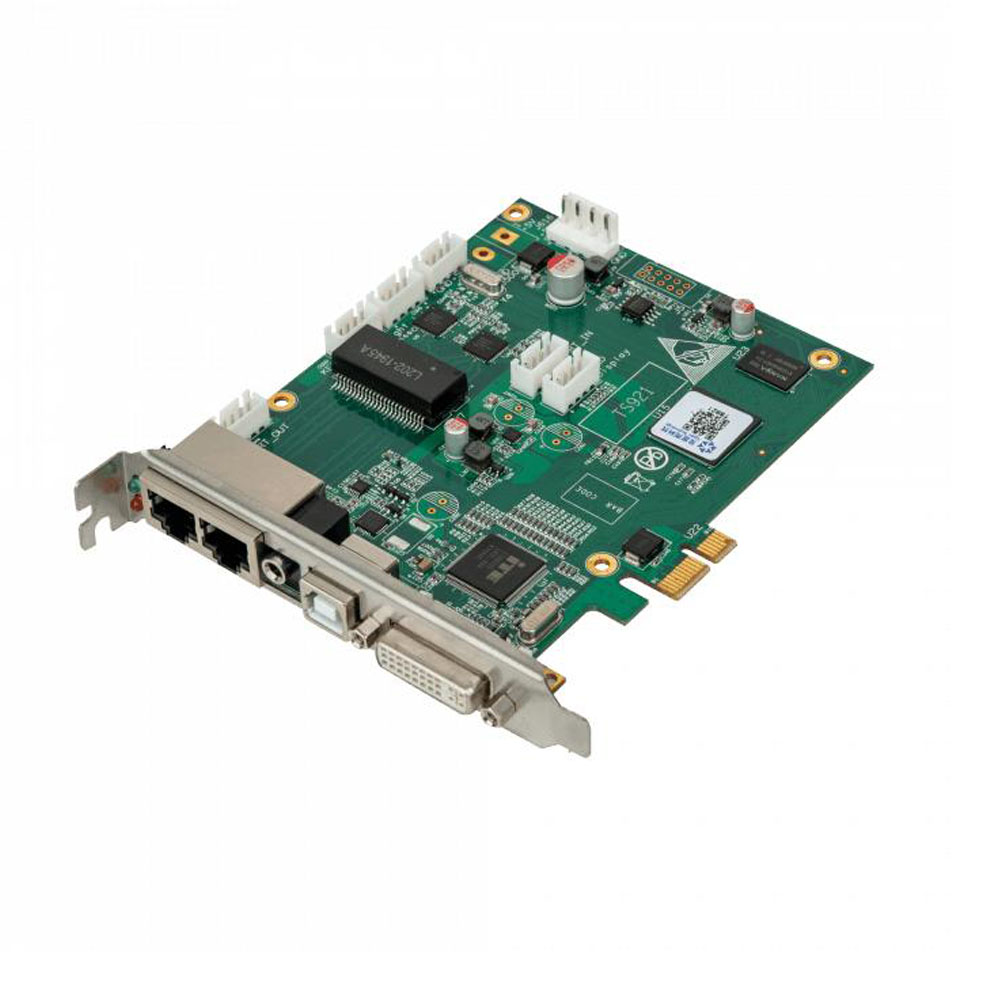

Linsn TS921 2-Port LED Sending Card, 1.3M Pixels 4K Controller

Linsn TS921 2-Port LED Sending Card, 1.3M Pixels 4K Controller

Model: Linsn TS921. It is a compact and high-efficiency 2-port LED sending card engineered for professional full-color LED display systems, delivering reliable performance and core connectivity for standard-definition to 4K video wall applications. The card features a maximum loading capacity of 1.3 million pixels, supporting resolutions up to 3840×1920 (4K), 2048×640, 1920×1200, and 1280×1024, catering to high-definition and 4K video source requirements.

Input interfaces include 1×DVI (Single Link), 1×3.5mm Audio for integrated video and audio signal input; output interfaces feature 2×Gigabit Ethernet (RJ45) ports, each supporting up to 650,000 pixels, ensuring stable and fast data transmission to receiving cards. It adopts a PCI-E 1X interface for wide computer compatibility and simple installation, with additional USB 2.0 for configuration via LEDStudio V9.0 or above software.

Key functions include RCG file readback and broadcast, CON file broadcast, and display rotation support for flexible screen layout adjustment. It delivers 16-bit grayscale and 12-bit/10-bit/8-bit color depth support, ensuring smooth gradients and vivid color reproduction. The card supports 4K@30Hz video input and multiple video formats such as RGB, YCrCb 4:2:2, YCrCb 4:4:4.

Designed for durability, it operates efficiently in temperatures from -20℃ to 70℃ with 0%–95% humidity tolerance, suitable for 24/7 indoor and outdoor fixed or rental operations. It has a low power consumption of 3W with 5V DC power supply.

Application scenarios: indoor/outdoor LED video walls, rental & stage LED displays, shopping mall advertising screens, airport & railway station information displays, hotel lobby LED walls, exhibition & convention center screens, and medium-sized venue event displays.
