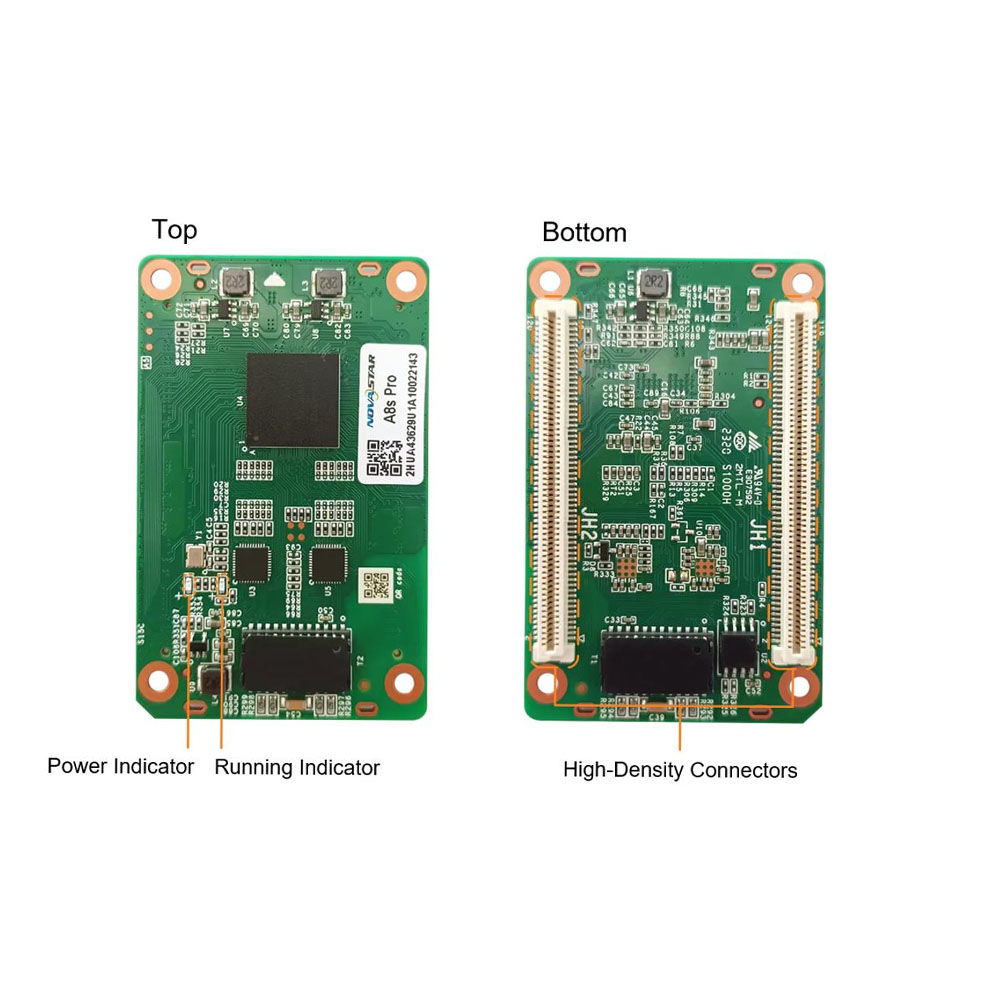

A8S Pro is a compact, high-end LED receiving card built for premium high-resolution display projects. It supports a maximum loading capacity of 512×512 pixels at 60Hz, delivering ultra-fine, stable images for both indoor and rental LED screens.
Equipped with advanced Image Booster 2.1 and Thermal Compensation 2.0, it ensures consistent brightness and color uniformity even under long‑hour operation. It features HDR10 and HLG support, 22bit+ grayscale, 64× dynamic contrast, and pixel‑level RGB calibration for vivid, true‑to‑life visuals.
For connectivity, it uses high‑density connectors with 40 groups parallel RGB or 64 groups serial data (expandable to 128) and a standard gigabit Ethernet port. Transmission distance reaches 100 meters via CAT6 cable, with EMC Class B compliance for stable performance in complex environments.
Measuring 70×45×8.3 mm and weighing 17.2 g, it supports low latency, 3D, 90° rotation, and seam correction. Ideal for fine‑pitch indoor displays, conference walls, stage rental screens, high‑end retail signage, and exhibition booths.
