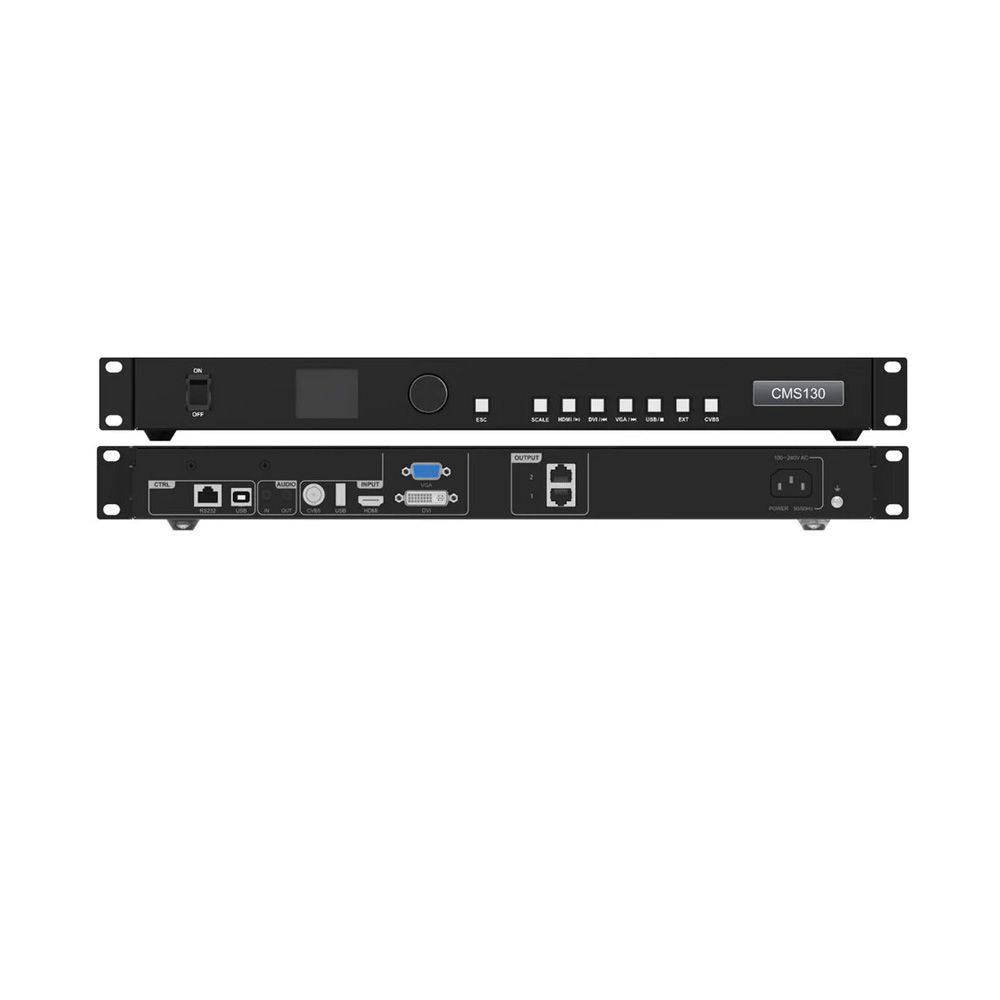

NovaStar CMS130 All‑in‑One LED Display Controller

NovaStar CMS130 is a compact all‑in‑one LED display controller integrating video processing and sending functions. It supports a maximum load of 1.3 million pixels, with output resolution up to 1920×1920 pixels for mid‑size LED screens. Equipped with rich input interfaces: 1×DVI, 1×HDMI 1.3, 1×VGA, 1×USB, 1×CVBS, and 2×Gigabit Ethernet outputs for signal transmission. It supports standard Ethernet cable transmission up to 100 meters for short‑distance signal delivery. The controller features real‑time video scaling, input cropping, adjustable layer parameters, and EDID management for stable signal compatibility. It offers six user‑defined presets for quick configuration, plus brightness, gamma, and color adjustment for optimal image performance. With an industrial‑grade casing and 12W low power consumption, it operates reliably in -20°C to +60°C environments. Ideal for small‑to‑medium LED displays in shopping malls, hotels, exhibition halls, TV studios, and corporate meeting rooms.
