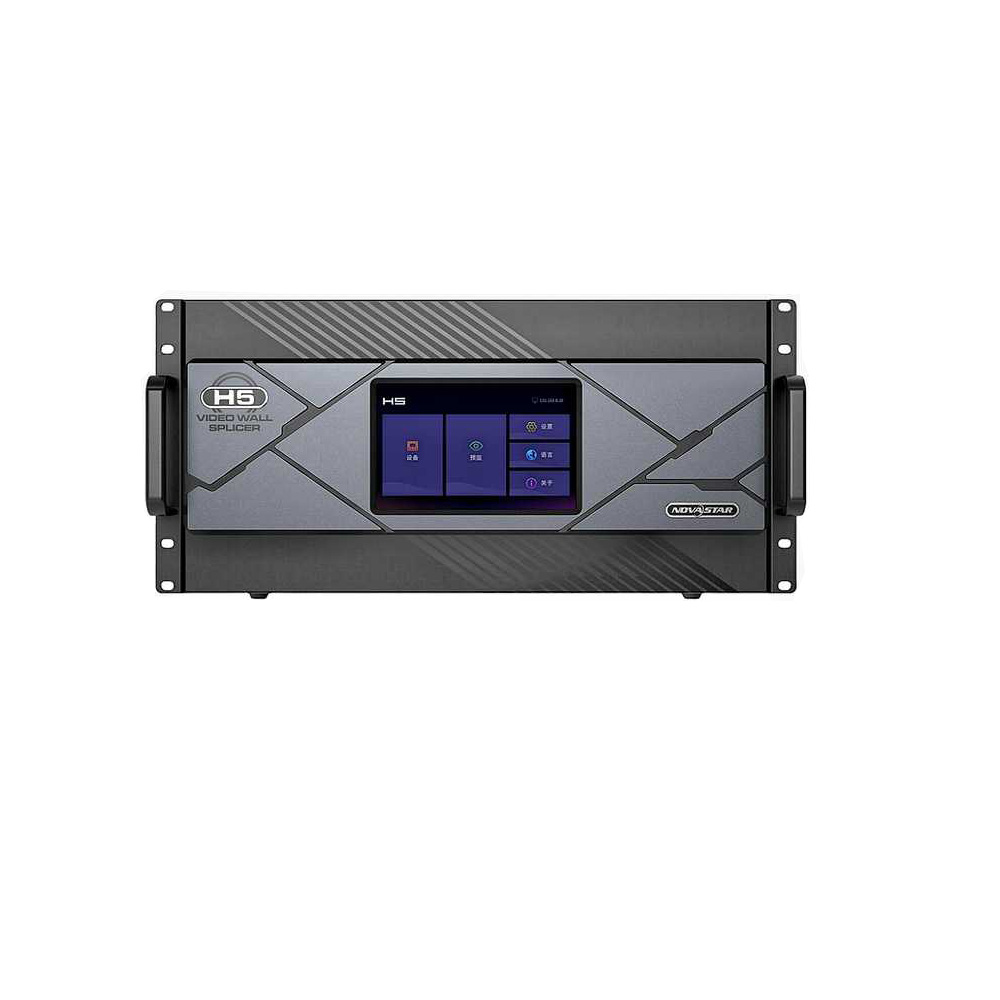

NovaStar H5 LED Video Wall Splicer Controller 4K Modular

NovaStar H5 is a high-end modular LED video wall splicer and controller designed for large-scale fine-pitch LED display projects. It features a 5U rack-mount chassis with a pure hardware FPGA architecture for stable, low-latency processing. The model supports max loading capacity up to 39 million pixels with H_20xRJ45 sending card or 62.4 million pixels with H_4xfiber card, delivering 4K@60Hz, 10-bit RGB 4:4:4 video processing. It offers rich modular inputs including HDMI2.0, DP1.2, 3G-SDI, DVI, VGA, CVBS and IP, plus outputs with 10G optical ports and Gigabit Ethernet for ultra-long distance transmission up to 10km via single-mode fiber. It supports hot-swappable I/O cards, pixel-level calibration, multi-screen splicing, image rotation, and HDCP compliance. The built-in LCD panel enables on-site monitoring and control. Widely used in command centers, control rooms, exhibition halls, stadiums, rental events, XR studios and high-end commercial LED video walls requiring ultra HD visuals and reliable performance.
