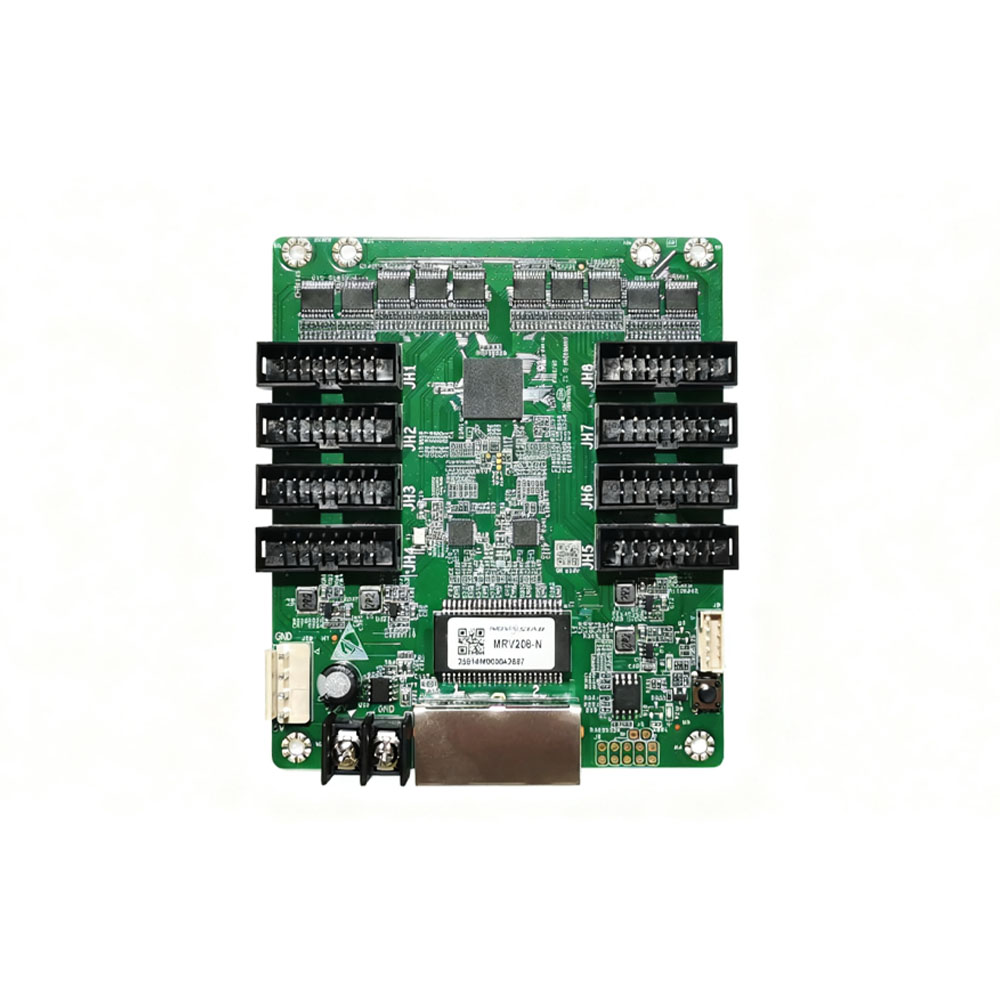

The MRV208-N is a high‑performance LED receiving card for indoor fixed and rental LED displays, widely used in professional LED video wall systems. It features 8 standard HUB75E connectors supporting up to 16 groups of parallel RGB data, ensuring stable and fast signal transmission.
With advanced pixel‑level brightness and chroma calibration, the MRV208-N delivers uniform color and brightness across the entire screen, eliminating color differences effectively. It supports 18bit+ grayscale, low latency, 3D function, RGB independent gamma adjustment and 90° image rotation, greatly enhancing visual quality.
When paired with M3 series controllers, the maximum loading capacity reaches 512×512@60Hz for PWM driver ICs and 512×384@60Hz for common driver ICs. Signal transmission distance extends up to 100 meters via CAT6 cable without extra amplifiers.
Compact in size at 95.3×109.4×19.3mm, it fits easily inside LED cabinets. Built‑in temperature and voltage monitoring ensure long‑term reliability. Ideal applications include indoor advertising screens, shopping mall displays, rental video walls, conference room screens and information guidance displays.
