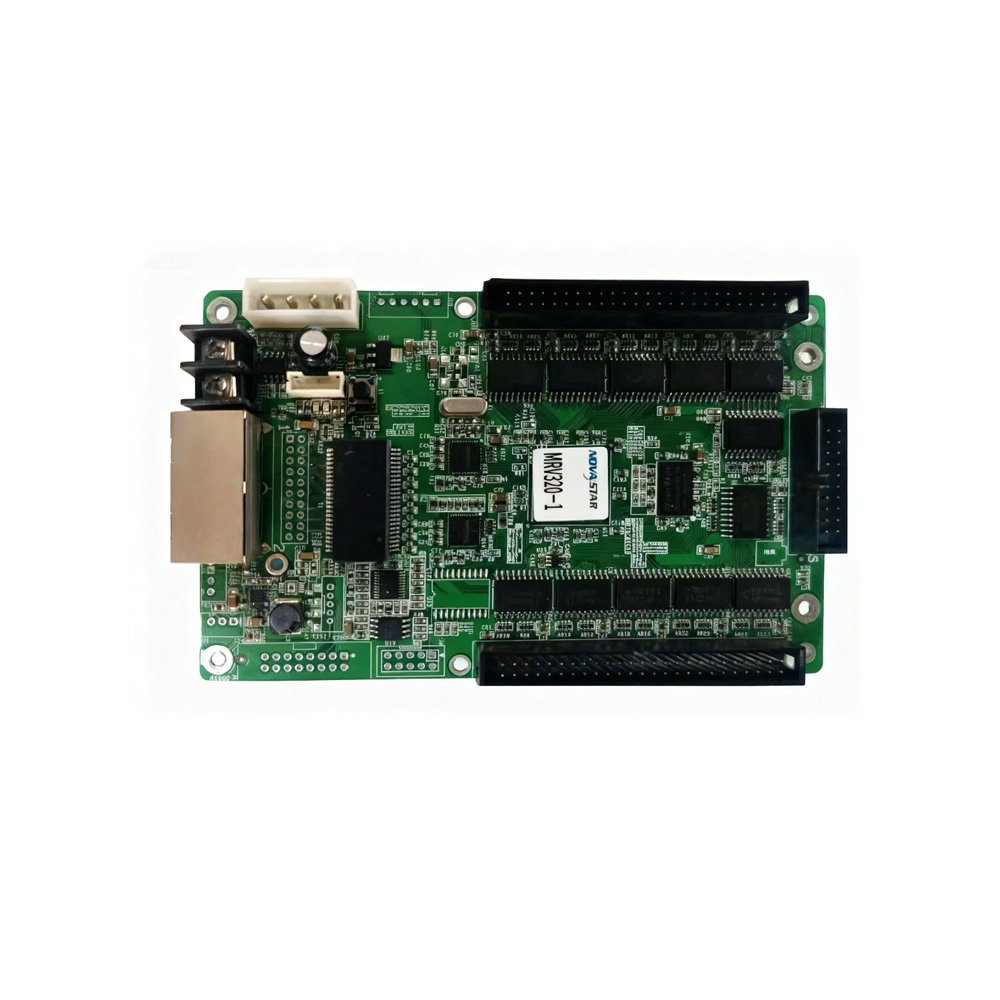

NovaStar MRV320 LED Display Receiving Card

Model: MRV320 Function: Nova M3 MRV320 is an advanced LED receiving card compatible with all MRV300 functions, supporting monitor card connection for comprehensive system oversight. It delivers pixel‑level brightness and chromaticity calibration, ensuring uniform display across modules. The card outputs 16 groups RGBR data, 20 groups RGB data, and 64 groups serial data, supporting a maximum resolution of 256×226 pixels. It features configuration file readback, temperature monitoring, Ethernet communication status detection, and power voltage detection for stable 24/7 operation. Transmission Distance: Achieves reliable signal transmission up to 80 meters via standard Cat5e/Cat6 cable, suitable for medium to large LED video wall setups. Interfaces: Equipped with two 50P HUB connectors for module output, one Gigabit Ethernet input port, and 3.3V–5.0V DC wide voltage input. Application Scenarios: Ideal for indoor LED video walls, outdoor advertising billboards, stage rental displays, exhibition screens, and corporate signage. Compliant with EU RoHS and CE‑EMC Class A standards, it fits diverse commercial and event installations.
