Model: MRV330Q
Function: NovaStar MRV330Q is a high‑performance LED receiving card from the M3 series, integrating 12 standard HUB75 connectors to eliminate separate HUB modules. It outputs 24 groups of RGB data and supports a maximum resolution of 256×226 pixels. It features pixel‑level brightness and chromaticity calibration, high grayscale, and high refresh rate for uniform, vivid visuals. It supports configuration file readback, program copy, pre‑store picture setting, temperature monitoring, Ethernet communication status detection, and power voltage detection for stable 24/7 operation.
Transmission Distance: Delivers reliable signal transmission up to 80 meters via Cat5e/Cat6 cable, suitable for medium to large LED video walls.
Interfaces: 12×integrated HUB75 ports, 1×Gigabit Ethernet port, 3.3V–5.0V DC wide voltage input.
Application Scenarios: Ideal for indoor LED video walls, outdoor advertising billboards, stage rental displays, exhibition screens, and corporate signage. Compliant with EU RoHS and CE‑EMC Class A standards for global commercial use.
LED Receiving Cards, NovaStar Receiving Cards

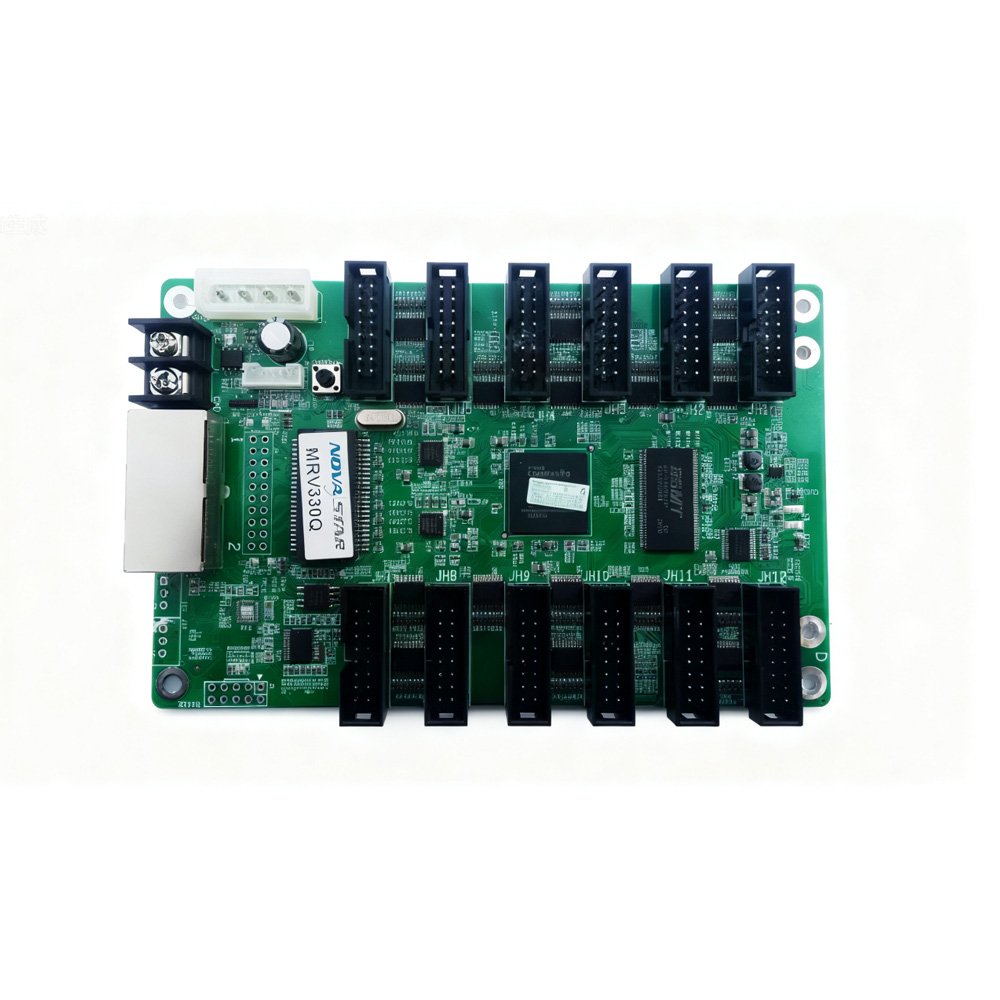

NovaStar MRV330Q Integrated HUB75 LED Receiving Card
NovaStar MRV330Q M3 series LED receiving card with 12 integrated HUB75 ports, 24 RGB data groups, and 256×226 resolution. Features pixel‑level calibration, high grayscale, and 80m stable transmission. Perfect for indoor/outdoor LED video walls and commercial displays.
