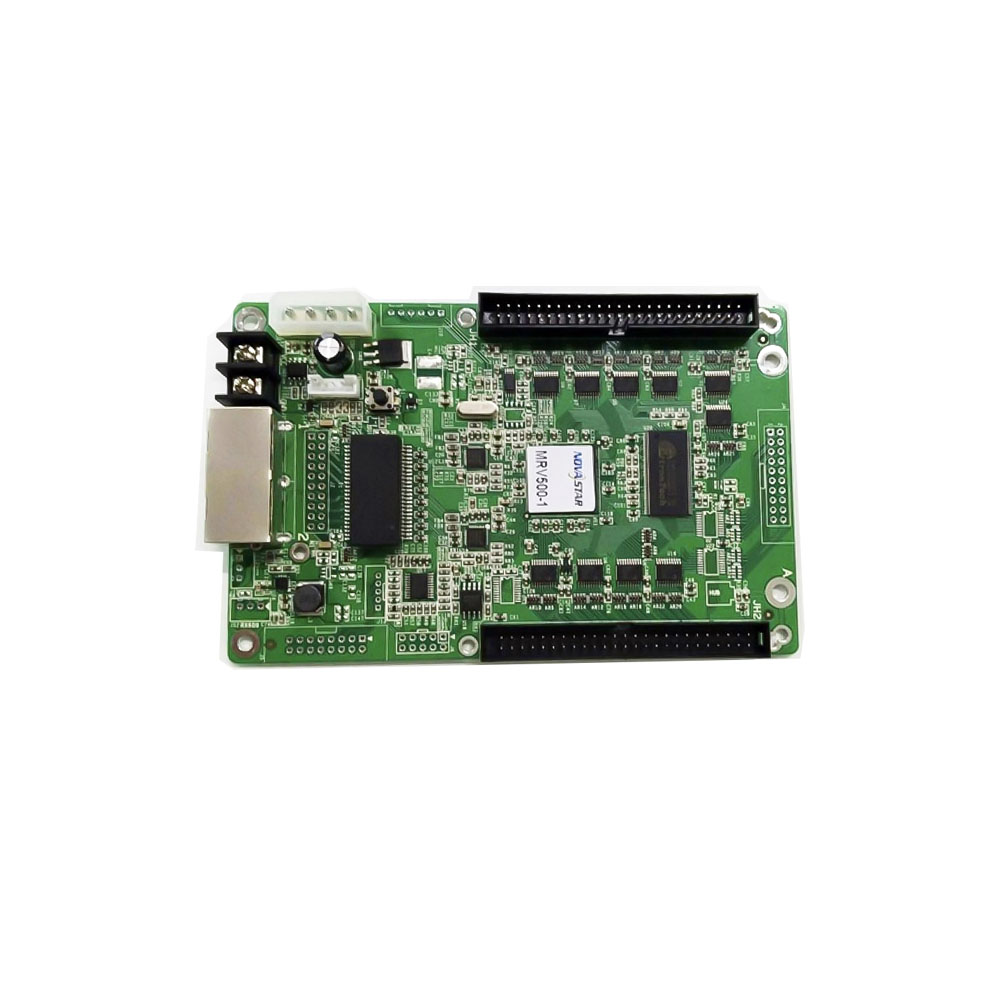

The NovaStar MRV500-1 is an advanced EMC‑compliant LED receiving card, serving as the electromagnetic‑optimized version of the MRV300. It significantly reduces system‑wide electromagnetic radiation, meeting CE‑EMC Class B and RoHS standards for safe, stable operation.
Model MRV500-1 supports a maximum loading capacity of 256×226 pixels per card. It provides flexible data output: 16 groups of RGBR data, 20 groups of RGB data, or 64 groups of serial data, compatible with diverse LED module configurations.
Equipped with dual 50‑pin interfaces, it eliminates the need for external HUB boards. It features high gray scale and high refresh rate, ensuring flicker‑free visuals in both high and low brightness modes.
Built‑in monitoring includes temperature detection, Ethernet communication status check, and 3.3V–5.5V power voltage monitoring. It supports configuration file readback, pixel‑level brightness and chromaticity calibration, and pre‑stored image settings for quick deployment.
Ideal for indoor and outdoor LED screens, advertising displays, stadium boards, and transportation information panels, the MRV500-1 delivers reliable, high‑performance control for professional LED display systems.
