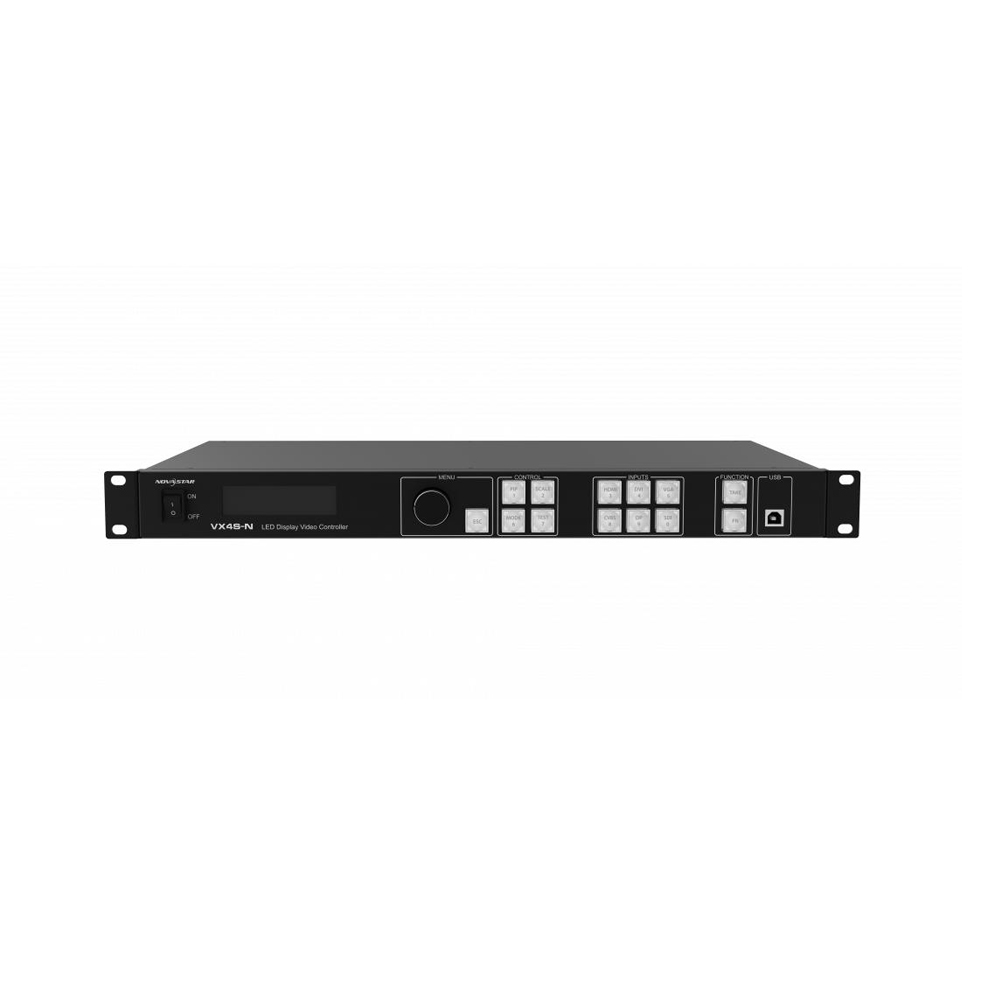

Novastar VX4S-N All‑in‑One LED Video Wall Controller 4‑Port

The Novastar VX4S-N is a compact all‑in‑one LED display controller for mid‑size video wall systems. Model VX4S-N supports a maximum pixel capacity of 2.3 million, with 4 Gigabit Ethernet outputs for stable transmission up to 100m. It features rich inputs including 1×HDMI 1.3, 1×DP, 1×DVI, 2×VGA, 1×SDI, and 2×CVBS for versatile signal access. Key functions include 3 independent display layers, seamless switching, adjustable PIP, and Nova G4 image processing for vivid visuals. It supports 8/10‑bit video sources, HDCP 1.4, and pixel‑level calibration for consistent color performance. The 1U rack‑mount design saves space, with an aluminum housing and 25W low power consumption. Operating temperature ranges from ‑20°C to +60°C for reliable 24/7 operation. Ideal for indoor LED video walls, stage events, retail displays, conference rooms, and rental applications.
