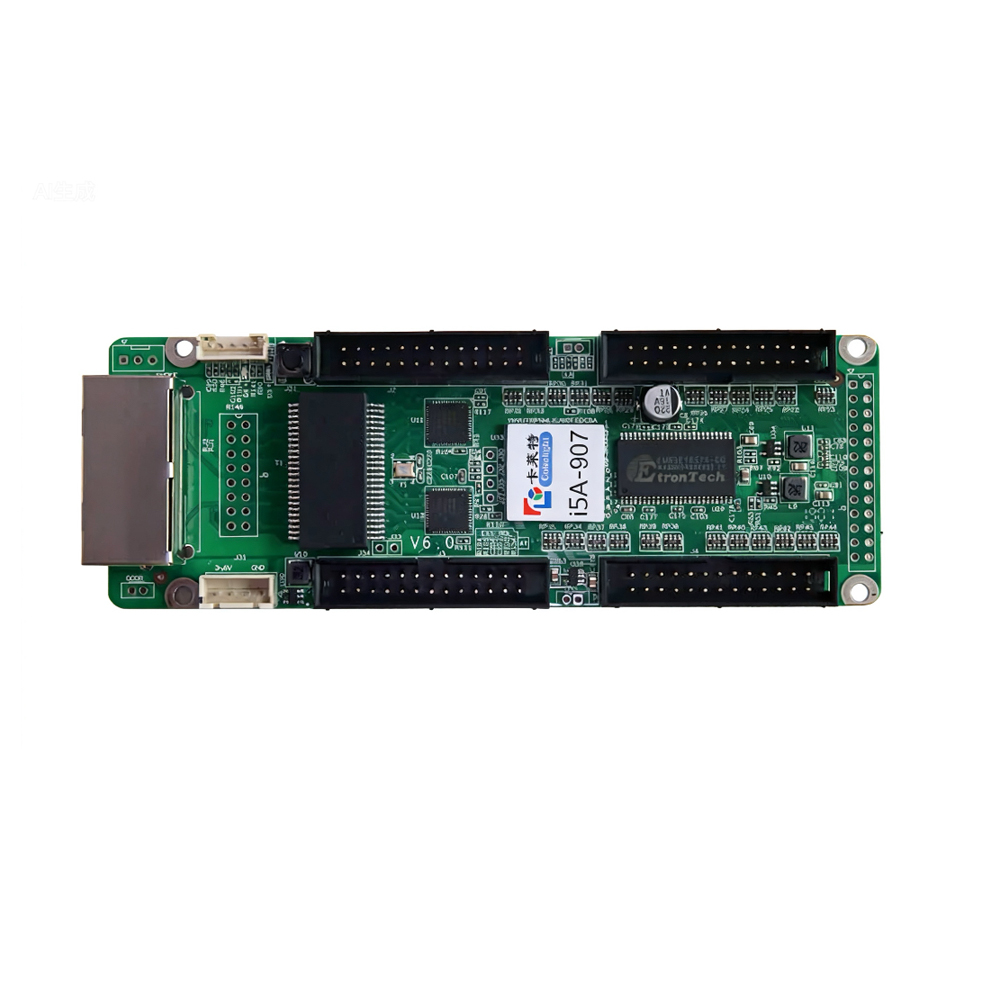

Colorlight i5A-907 Compact LED Receiving Card 16 Groups RGBR’ Output

Colorlight i5A-907 is a compact, high-performance LED receiving card designed for portable and space-saving LED display solutions. With dimensions of 137×48mm and a lightweight 70g design, it is ideal for color screens, die-cast aluminum cabinets, and other compact structures. The card features a pin-board power supply design with DC 3.3V-6V wide voltage input, eliminating the need for external power adapters and enhancing system stability. Equipped with a new-generation image processing core, it delivers high refresh rate, high grayscale, and high brightness performance even with conventional LED driver chips. It supports 14-bit high-precision point-by-point brightness and chromaticity calibration, ensuring uniform color reproduction and eliminating common display issues such as row darkening, low-gray reddish tint, and ghosting. The i5A-907 supports any scan mode from static to 1/32 scan, compatible with conventional, PWM, and lighting chips. It provides 16 groups of RGBR’ signal output (max 24 groups RGB) and supports arbitrary data offset and pumping point for creative displays, including spherical, diamond, and irregular screens. Additional features include loop redundancy, dual-card hot backup, dual-power backup, and environmental monitoring (temperature, humidity, voltage). It is fully compatible with Colorlight S/Z/C series sending cards and widely used in rental displays, stage screens, shopping mall ads, conference centers, and fixed installations requiring compact size and reliable performance.
