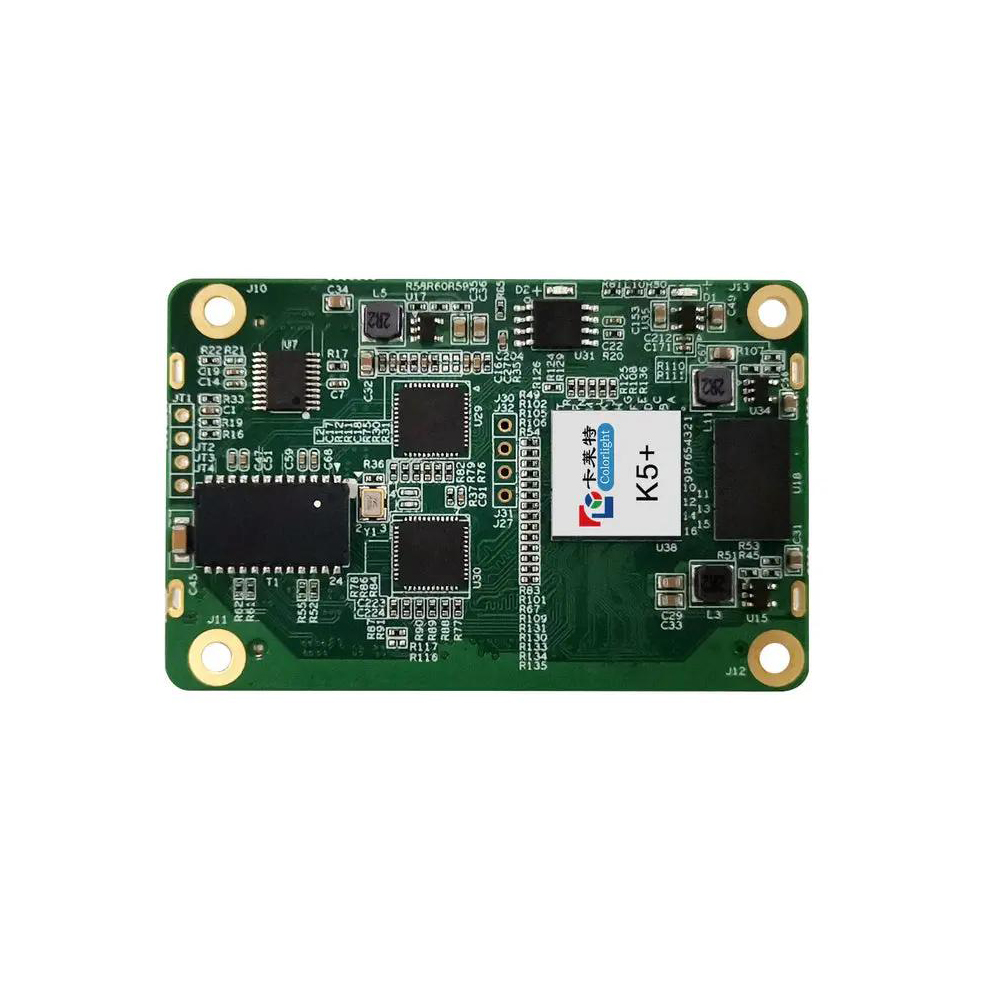

Colorlight K5+ LED Display Receiving Card

Model: Colorlight K5+. It is a compact high-end universal receiving card designed for fine-pitch LED displays, with dimensions of 70.0×45.0×7.8mm and a weight of 20g. It supports a maximum load capacity of 512×384 pixels, up to 32 parallel data groups or 32 serial data groups (expandable to 128 serial data groups). Equipped with high-density connectors, it provides dustproof, shockproof performance and high stability. It features 8-bit color depth (16.7 million colors), 240Hz high frame rate support, and low-brightness high-grayscale processing for clear, smooth visuals. It offers independent RGB gamma adjustment, color temperature correction, and per-pixel brightness/chromaticity calibration for uniform display quality. Interfaces include 1×Gigabit Ethernet port (1Gbps rate) with a transmission distance of up to 100 meters via Cat5e cable. It supports dual-card hot backup, loop redundancy, and 7×24-hour uninterrupted operation. Additional functions include screen rotation (90°/180°/270°), data group offset, cabinet temperature/voltage monitoring, and quick firmware upgrade. Ideal for indoor/outdoor fine-pitch LED screens, high-end rental displays, command centers, shopping mall video walls, and compact LED installations.
