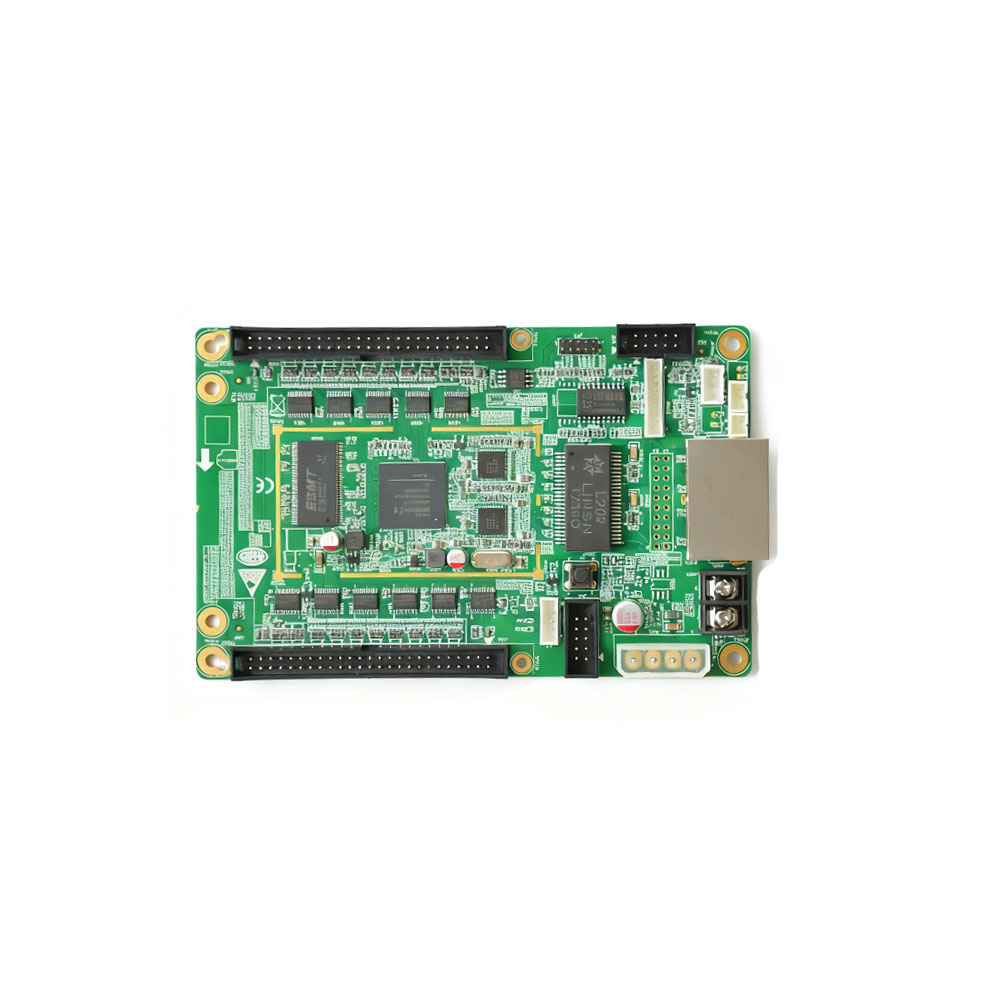

Linsn RV901H LED Video Wall Receiving Card

Model Linsn RV901H is a high-performance LED receiving card upgraded from the RV801 series, fully compatible with RV801 and supporting all its functions. It features an 18-bit signal processor, delivering up to 18-bit (260,000) grayscale per RGB channel for stunning color depth. The card supports a maximum resolution of 1024×256 pixels, with 1024-level single-pixel chromaticity correction and pixel-by-pixel brightness calibration. It offers rich output interfaces: 16 groups of RGBR’ data, 20 groups of RGB data, and 32 groups of serial data. Integrated monitoring includes temperature, humidity, smoke, two-channel fan speed, cabinet door status, and three-way voltage detection. It supports 12-bit HDMI color input (with TS901 sending card), network cable BER test, flat cable fault detection, configuration file readback, program replication, and dual-card hot backup for high-reliability applications. Compliant with CE-EMC Class B and RoHS standards. Ideal for indoor/outdoor LED video walls, stage displays, advertising screens, and rental LED systems.
