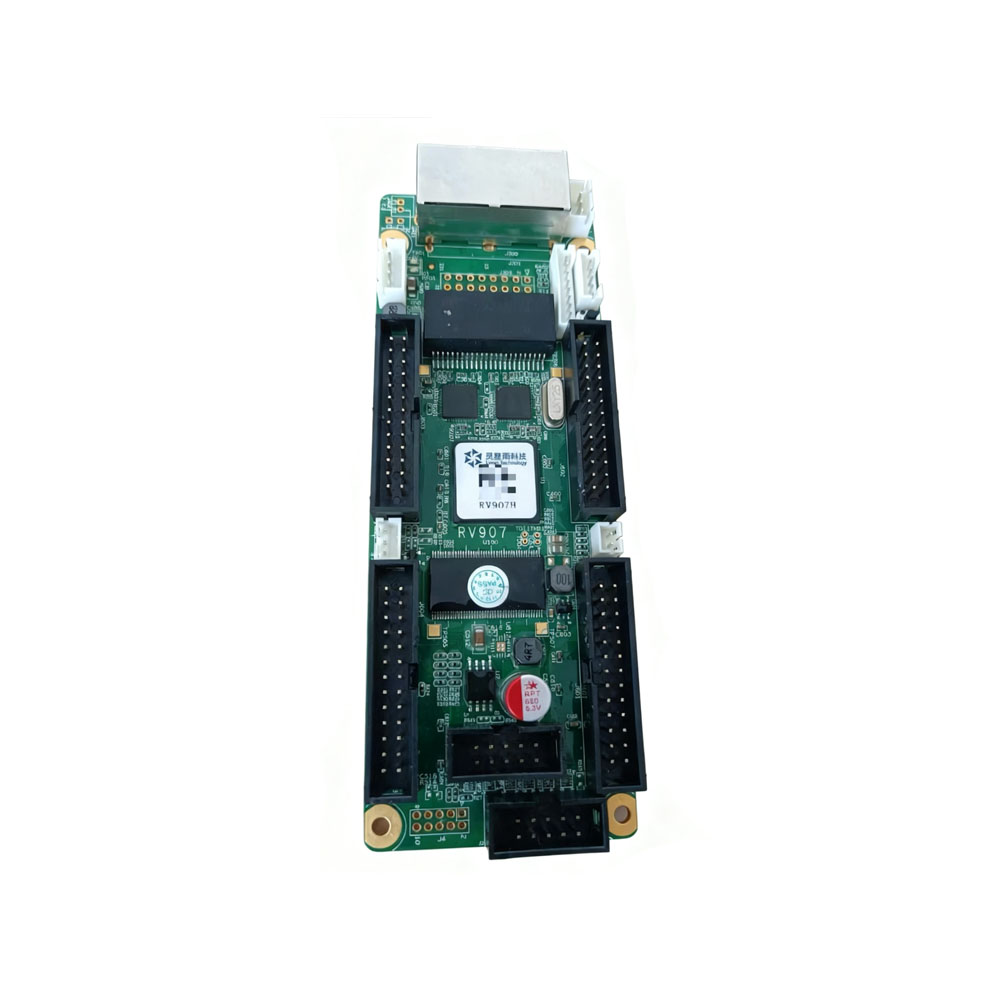

Model: Linsn RV907H. It is a high‑performance synchronous LED receiving card designed for rental and fixed LED display systems, fully compatible with Linsn RV801 and RV802 series with identical mounting holes for easy replacement. It features 4× output interfaces that directly drive LED modules without an extra hub card, saving cost and installation time. Each interface provides 6 groups of parallel data, delivering 24 groups in total for high refresh rate and smooth video performance. It also offers a 90° 26‑Pin interface for convenient PCB docking and 16 groups of serial data for LED lighting and curtain applications.
The RV907H supports single‑card max resolution of 1024×256 pixels and 1024‑grade single‑pixel chromaticity correction, ensuring precise color uniformity. Built with an 18‑bit signal processor, it achieves 260,000 grayscale levels per RGB channel and supports 12‑bit HDMI color input when paired with 9th‑generation sending cards. Signal transmission reaches 100 meters via standard CAT5e/CAT6 Ethernet cables. Additional features include configuration file readback, pixel fault detection, network cable BER test, temperature/voltage/fan‑speed monitoring, and hot backup support for reliable 24/7 operation.
Application scenarios include indoor/outdoor rental LED video walls, stage rental displays, stadium screens, shopping mall advertising, airport/railway signage, exhibition booths, conference rooms, and LED curtain lighting projects.
